The CTO48P is a pooling module for splicing, coupling and stirring up to 48 optical fibers. The modules can be stacked to support configurations of greater capacity or to allow the pooling between building operators and commercial operator. It allows the connection between the cable coming from the outside and the cable of the riser.
Model | CTO-48P |
Width | 450mm |
Heigth | 180mm |
Depth | 150mm |
Net Weight | 3.2kg |
No. of Splice Tray | 4 |
Protection Grade | IP30 |
Maximum Capacity | 48 Splices + 48 SCAPC Adapters |
No. of Splitters | Maximum 4PCS 1:16 |
Colour | RAL7035 |
Working Temperature | -25°C ~55°C (5 to 95% Relative Humidity) |

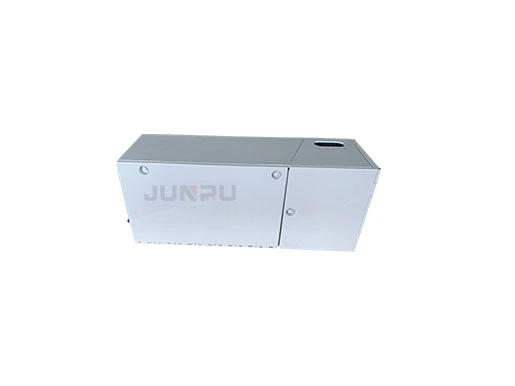

The CTO48P is an optical distribution box for Fiber To The Home applications with a capacity of 48 users.
FTTH

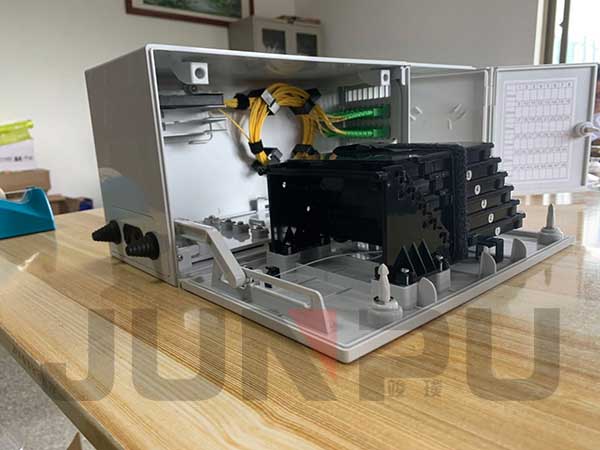

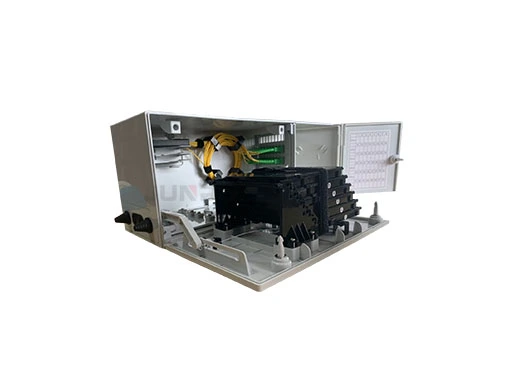

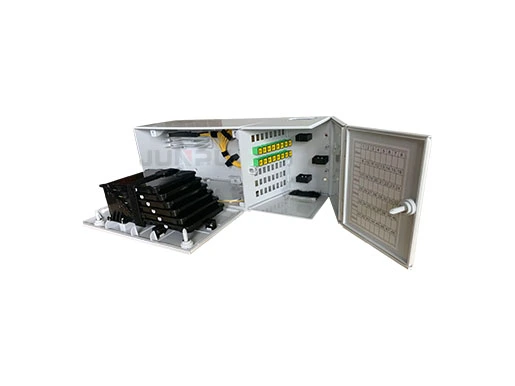

Separate compartments for splicing and patching. Each compartment has a door closed by a triangle key system.
Possible scalability depending on the number of operators addressing the building.
Optical cable access left with lashing system.
Standardized dimensions, according to TELEFONICA recommendations.
