Cable Retainer and Hook Assembly for Outdoor Service Entrance Cable - Hangzhou Junpu Optoelectronic Equipment Co.,Ltd.

It is a component used in FTTH power and distribution networks to anchor and tension outdoor optical drop cables in overhead networks,at street intersections, utility poles, or building facades.

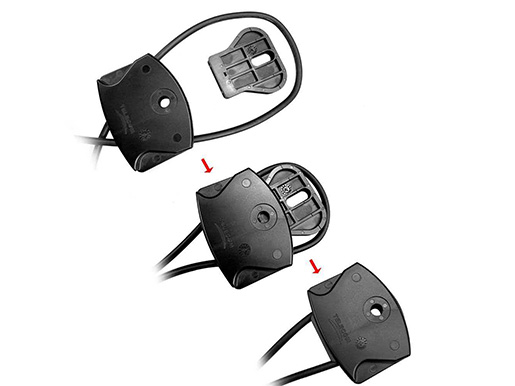

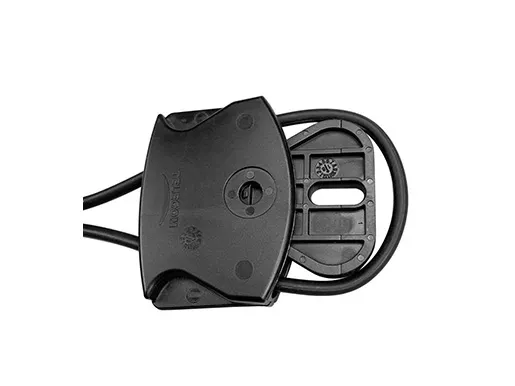

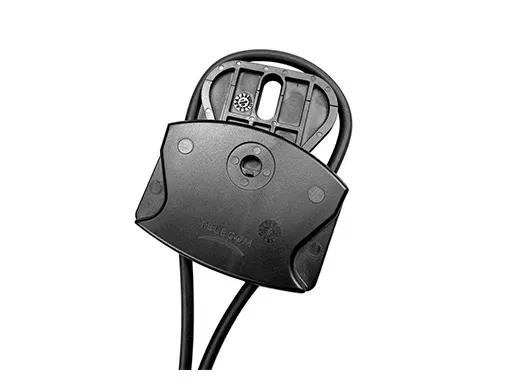

It consists of two separate pieces made of weather-resistant thermoplastic material that work together to hold and secure the cable. This is achieved through the bending effect of the inner piece against the outer one, utilizing the cable's own tension.

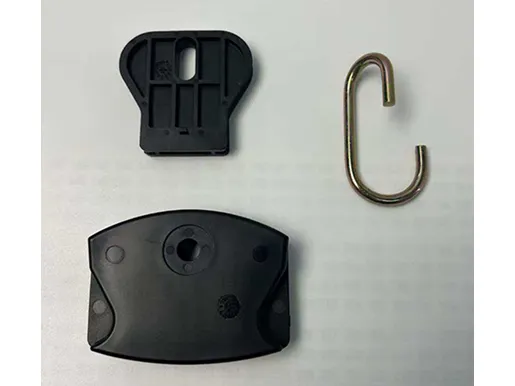

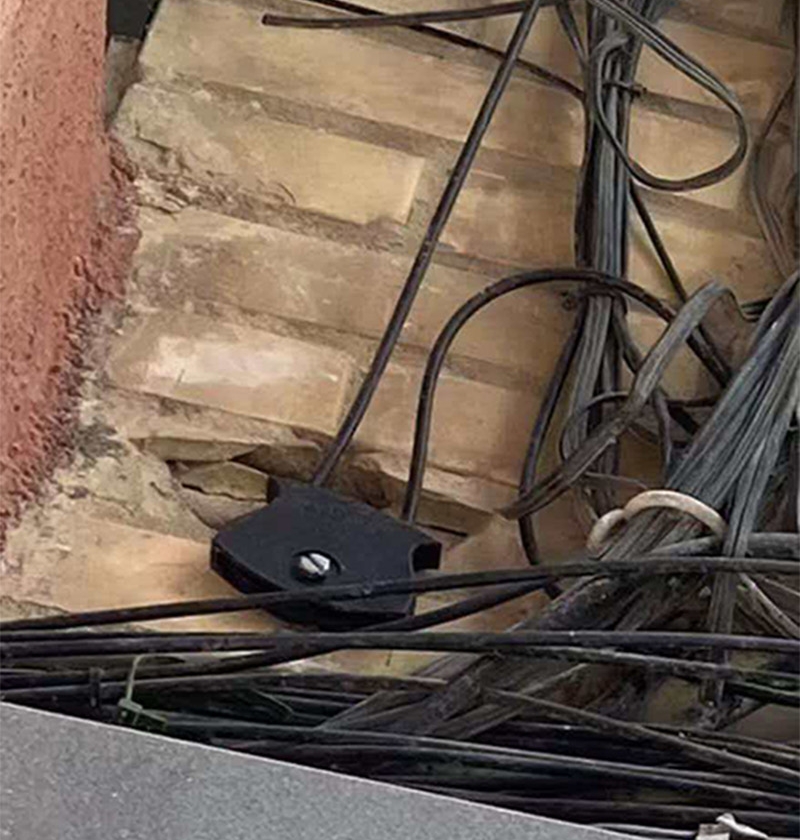

The handle features a mounting hole for direct wall installation using a 6x60 mm screw, or for pole mounting via the included metal hook suspension system.

GET A QUOTE About Cable Retainer and Hook Assembly for Outdoor Service Entrance Cable

Specification of Cable Retainer and Hook Assembly for Outdoor Service Entrance Cable

Dimensions

Altitude

54.4mm 80mm

Width

72.6mm 360.2mm

Depth

15mm 40mm

material

Black-colored poly amide

Authentic stainless steel

Characteristics of Cable Retainer and Hook Assembly for Outdoor Service Entrance Cable

Simple, quick, and reliable installation without requiring special tools or accessories.
It can be reused if the power cord is replaced.
It facilitates the installation of overhead or facade network cables, allowing the process to begin at an intermediate point along the route.
It can securely anchor 5 to 6.8 mm optical fiber cables without causing optical loss. The device prevents permanent damage or crushing of the cable sheath.
Used for retaining telecommunications cables (fibers, pairs, coaxial) and distributing power in circular sections.
Mechanical supports and typical environmental conditions for an external air or facade installation.
Maximum variation of 0.5 dB in optical power (with 500 N cable tension at 20 °C).
Maximum load at the cable retention point: 850N (at 20).
Operating temperature: -30 to 70 °C.
Cable curvature radius of 53 mm.
The product is designed for a minimum lifespan of 20 years.
All materials compliant with ROHS.
