FRB-4A-LC

FRB-4A-LC

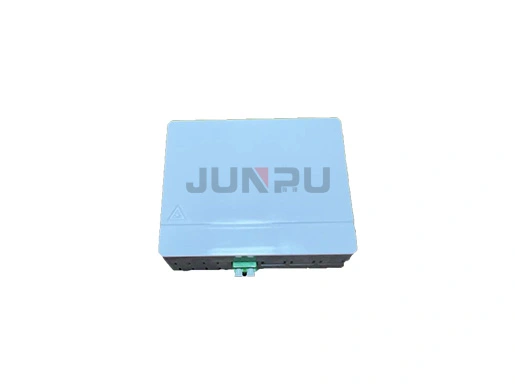

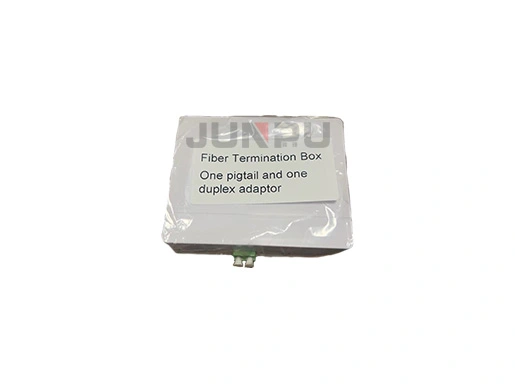

FRB-4A LC comes with 1 unit 0.9mm LC pigtail and 1 unit duplex LC connectors. It is used as a termination point for the drop cable to connect with patch cable in FTTH indoor application. It integrates fiber splicing, termination, storage and cable connection in one solid protection box.


Feature

  • Dust-proof design with IP-45 Protection level.

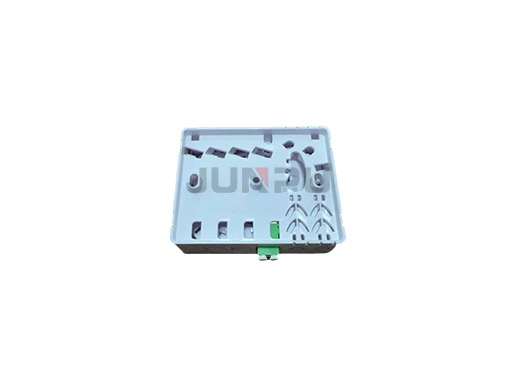

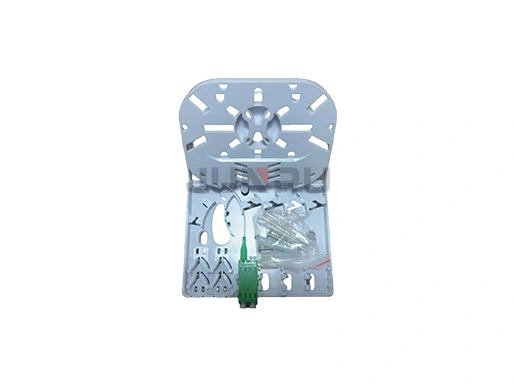

  • Integrated with splice cassette and cable management rods. Manage fibers in a reasonable fiber radius condition.

  • Easy to maintain and extend the capacity.

  • Suitable for the fusion splice or mechanical splice. Embedded type surface, easy for installation and removal. 4~8 ports cable entrance for patch cable.


Specifications

ItemParameters
Scope of Application3.0x2.0mm drop cable or indoor cable
Fiber Cladding Diameter125um(G652&G657)
Fiber Diameter250um&900um
Fiber TypeSM&MM
Tensile Strength> 50 N
Operating temperature-40 ~ +85 C
Connecting Adapter SC & LC
Insertion loss<0.2dB
Return loss>50dB(UPC),>60dB(APC)


  Configuration


MaterialSizeMax CapacityMounting wayWeightColor
PC + ABS100.5X80.5X28.8MMSC 4 portsLC 8 portsWall mounting0.4kgGrey
