12 Core Optical Fiber Cable Distribution Box - Hangzhou Junpu Optoelectronic Equipment Co.,Ltd.

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

GET A QUOTE About 12 Core Optical Fiber Cable Distribution Box

Specifications of 12 Core Optical Fiber Cable Distribution Box

Item	Specifications	Remark
External dimension(mm)	151.8105.759
Installation hole position(mm)	141
Color	PANTONE 428C	Customizable
Size and quantity of optical cable hole	Optical cable straight through without cutting
Input type/type of output	SC adapter
Capacity(Max)	12 cores
Into the largest cable diameter (mm)	ᴓ12
Cable outlet size(mm)	2*3~ᴓ5
IP protection level	IP54
Flammability	HB(Conventional)	can be customized according to requirements
Neutral salt spray test (NSS)	48 h	can be customized according to requirements


Characteristics of 12 Core Optical Fiber Cable Distribution Box

Total enclosed structure.
Material: PC+ABS, wet-proofs, water-proof, dust-proof, anti-aging, protection level up to IP54.
Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
Cable，pigtails，patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.

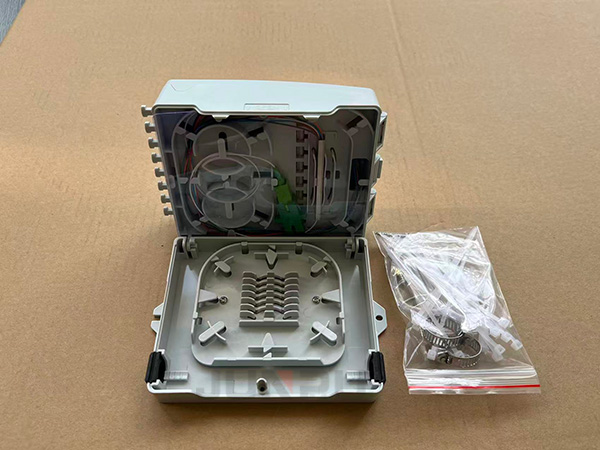

Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
Cabinet can be installed by the way of wall-mounted
